Rega Elicit Mk5

SKU REGA-028-AM-B Categories , Brand:

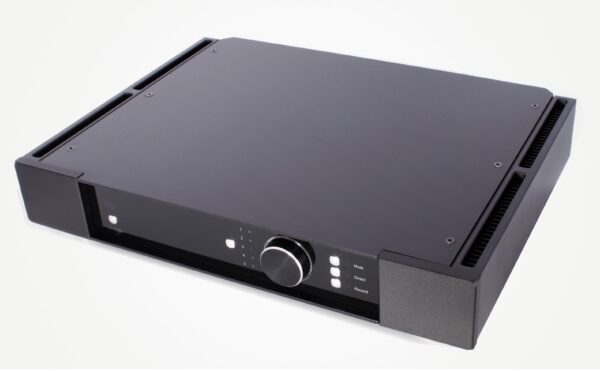

The all new Elicit MK5 stereo integrated amplifier is designed and built to the highest standard. Housed in our latest custom case to match the rest of the Rega range, the new MK5 builds on previous Rega designs by using our multi-award-winning Class A/B power amplifier circuit to deliver a powerful 105 W per channel into 8 Ω loads (127 W into 6 Ω). Our engineers have designed a new Rega DAC circuit offering digital connectivity and greater integration with a variety of other products. We have taken great care to incorporate a high-quality MM phono stage and the headphone output has been configured such that the speaker switching is performed by the output mute relay to avoid obstructing the signal path.

R49,990.00

Description

  • 105 Watts per channel into 8
  • 127 Watts per channel into 6
  • 162 Watts per channel into 4


Input sensitivity for 105 Watts into 8

  • Line inputs (input 1 switch set to line) 2-5 and record – 196mV load 10K
  • Phono (input 1 switch set to phono) – 2mV Load 47K in parallel with 220pF
  • Direct input – 760mV Load 50K
  • Power amplifier gain – 31.6dB


Output sensitivity (at rated outputs)

  • Record output – 196mV for rated inputs
  • Pre-amplifier output – 760mV for rated inputs
  • Dimensions: W 432mm x D 340mm x H 82mm
  • Weight – 12.5kg
